Element varname

Namespace No namespace

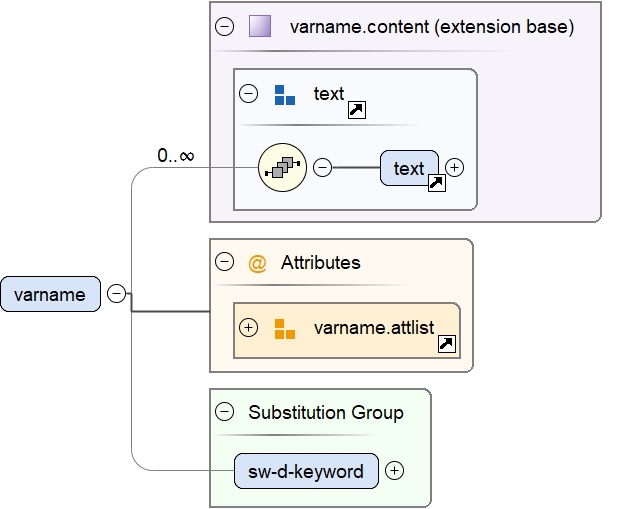

Diagram
Element textElement Group textComplex Type varname.contentAttribute Group varname.attlistElement sw-d-keyword
Type extension of Complex Type varname.content
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Element text
Children Element text
Instance
<varname audience="" base="" CaseNumber="" class="+ topic/keyword sw-d/varname " conaction="" conkeyref="" conref="" conrefend="" dir="" id="" importance="" keyref="" xml:lang="" otherprops="" outputclass="" platform="" product="" props="" rev="" status="" translate="" Why="" xtrc="" xtrf="">
  <text audience="" base="" CaseNumber="" class="- topic/text " conaction="" conkeyref="" conref="" conrefend="" dir="" id="" importance="" xml:lang="" otherprops="" platform="" product="" props="" rev="" status="" translate="" Why="" xtrc="" xtrf="">{1,1}</text>
</varname>
Attributes
QName Type Default Use
Attribute Change-attrs / @CaseNumber optional
Attribute Change-attrs / @Why optional
Attribute filter-atts / @audience optional
Attribute select-atts / @base optional
Attribute varname.attlist / @class + topic/keyword sw-d/varname optional
Attribute conref-atts / @conaction restriction of xs:token optional
Attribute conref-atts / @conkeyref optional
Attribute conref-atts / @conref optional
Attribute conref-atts / @conrefend optional
Attribute localization-atts / @dir restriction of xs:token optional
Attribute id-atts / @id xs:NMTOKEN optional
Attribute select-atts / @importance restriction of xs:token optional
Attribute varname.attributes / @keyref optional
Attribute filter-atts / @otherprops optional
Attribute varname.attributes / @outputclass optional
Attribute filter-atts / @platform optional
Attribute filter-atts / @product optional
Attribute filter-atts / @props optional
Attribute select-atts / @rev optional
Attribute select-atts / @status restriction of xs:token optional
Attribute localization-atts / @translate restriction of xs:token optional
Attribute @xml:lang optional
Attribute global-atts / @xtrc optional
Attribute global-atts / @xtrf optional
Source
<xs:element name="varname" substitutionGroup="sw-d-keyword">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="varname.content">
        <xs:attributeGroup ref="varname.attlist"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
